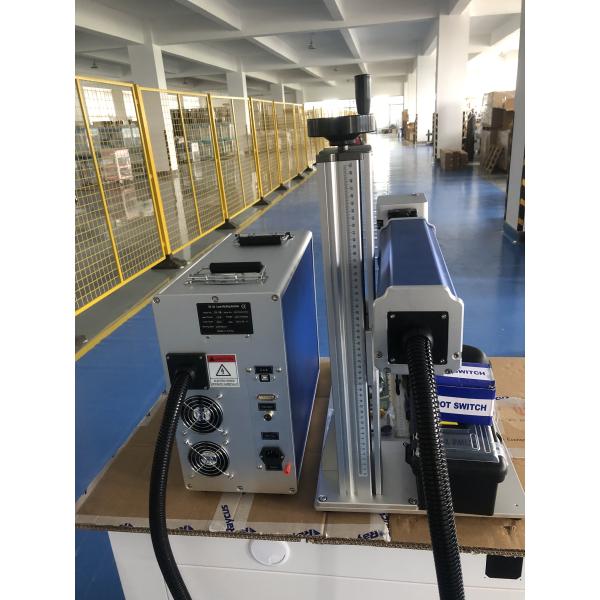

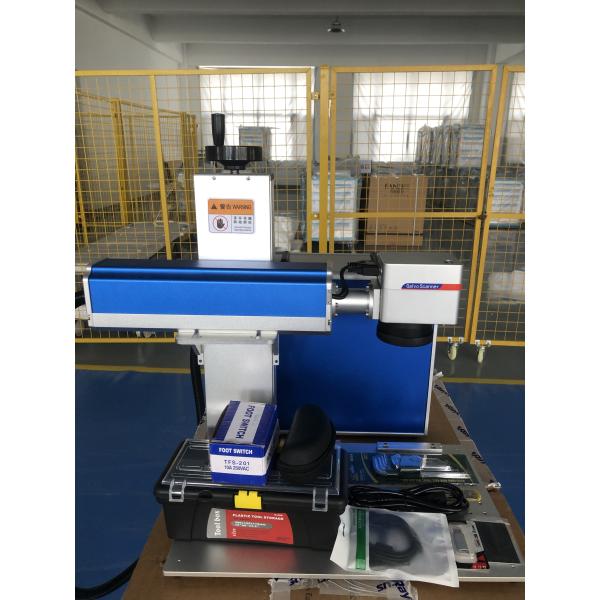

Accuracy Advanced Laser Marking Fiber 2.5D Workbench Table Split Machine with MAX/RAYCUS/JPT/IPG Laser Source and SINO-GALVO Lens

Name: Accuracy Advanced Laser Marking Fiber 25D Workbench Table Split Machine with MAXRAYCUSJPTIPG Laser Source and SINOGALVO Lens
Brand: GONXING
Price: 1 USD

Quality Accuracy Advanced Laser Marking Fiber 2.5D Workbench Table Split Machine with MAX/RAYCUS/JPT/IPG Laser Source and SINO-GALVO Lens for sale

Application : Laser Marking, Laser Marking

Working Accuracy : ±0.001mm

Graphic Format Supported : AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP

Laser Type : Fiber Laser

Condition : New

CNC or Not : Yes

Cooling Mode : Air Cooling

Control Software : EZCAD

Place of Origin : Shandong, China

Brand Name : GONXING

Laser Source Brand : MAX/RAYCUS/JPT/IPG

Control System Brand : EZCAD

Weight (KG) : 45 KG

Key Selling Points : High-accuracy

Warranty : 3 years

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C

Marking Area : 110*110mm /175*175mm/ 200*200mm

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 3 years

Core Components : Engine

Mode of Operation : Pulsed

Configuration : bench-top

Feature : traceability

Laser source : Raycus Max JPT IPG

Keywords : Laser Markng Machine

Function : Marking Logo Metal Non Metal

GALVO lens : SINO-GALVO lens

Interface connection : USB Interface

Red Light : Double red light

Power Tunability : 10 to 100%

Wavelength : 1064 ± 5 nm

Power Stability : ≤3 %

Price : $1,096.00/sets 1-4 sets

MOQ : 1 set

Payment Terms : T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow

Contact Now

Accuracy Advanced Laser Marking Fiber 2.5D Workbench Table Split Machine with MAX/RAYCUS/JPT/IPG Laser Source and SINO-GALVO Lens

Product name	Fiber laser marking machine	Cooling mode	Air cooling
Product Series	GX-M	Maximum marking speed	700mm/s
Laser Power	MAX/JPT/Raycus/IPG	Minimum line width	0.015mm
Power	30W/50W/80W/100W/120W/200W	Minimum characters	0.2mm
Laser wavelength	1064 nanometer	Pulse frequency	30KHz-100KHz(Raycus) 1KHz-4000KHz(JPT)
Maximum marked area	300*300mm	Operating environment	Operating temperature:0-40 Storage temperature:-10-60 Humidity:30%-85%
Minimum marking area	50*50mm	Power supply	AC110V/220V+10%/50hz or 60hz
Control software	EZCAD3.0/EZCAD2.0	Operating system	Win XP/7/8/10/11(64bit)

High speed galvanometer

The use of high-speed galvanometer scanning head reduces delay, improves marking speed and efficiency, and is widely used to mark metal, plastics, motherboards, glass, ceramics and other items.

Power switch button

Buttons, emergency stop switches, etc. are not damaged and have a long service life and are not easily damaged.

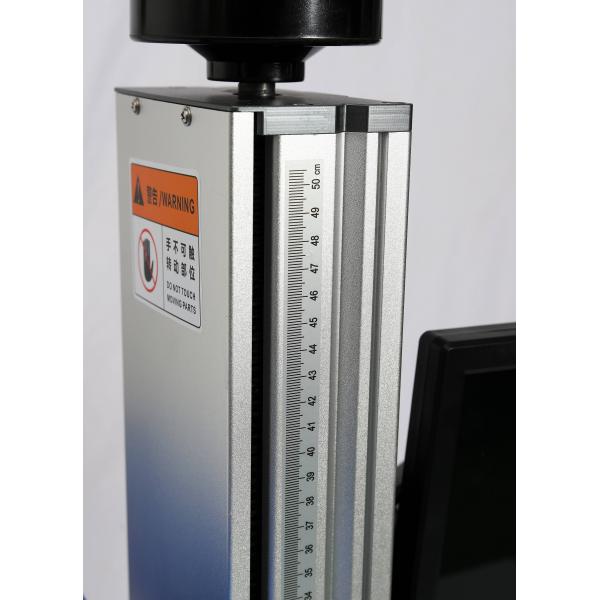

Lifting scale

It has a scale and scale pointer light path, and has a locking function for lifting and lowering to prevent defective products caused by changes in focal length during mass production.

Console

The convenient workbench is evenly arranged with 25*25mm screw holes to facilitate positioning of different products. Each machine is equipped with two stops as simple fixtures for customer convenience.

Q: Are you a factory or a trading company? A: We are a manufacturer established in 2015 and located in Jinan. Committed to providing economical, high-quality laser equipment to our users, we provide complete OEM and after-sales services. Welcome to visit our factory. Q: What is the machine guarantee? A: We will provide a 2-year warranty, and if there is a problem with the machine, parts will be provided free of charge during the machine warranty period. If there is a problem with the machine, you can send it back to us to reissue a new machine/parts for you. So any questions, please feel free to tell us and we will provide you with the best solution. Q: If I am a new buyer, how should I use the machine? A: We will provide English (or other language) manuals and videos for the machine you purchase. The software is easy to learn with instructional videos, and we also offer free online training. If you still need our help, please feel free to contact us via voice or video call. Q: How do you control your quality? A: Quality is priority. The entire production process will be subject to regular inspections and strict quality control. The entire machine will be tested to ensure they work well before leaving the factory. Our machines have passed CE certification, comply with European and American standards, and are exported to more than 100 countries. Q: How do I know your machine is designed for my product? A: You can send us samples for marking to check the quality, and we can help you with sample testing. Free sample marking service provided.
